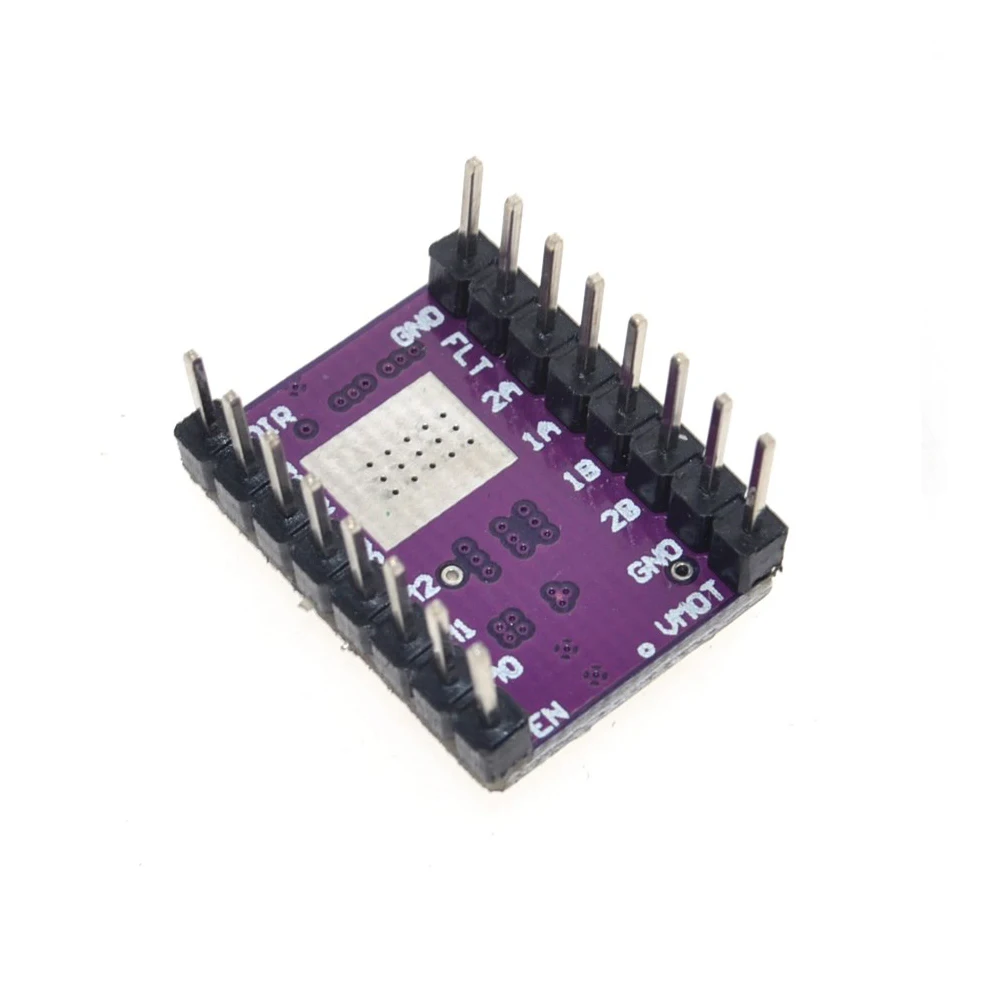

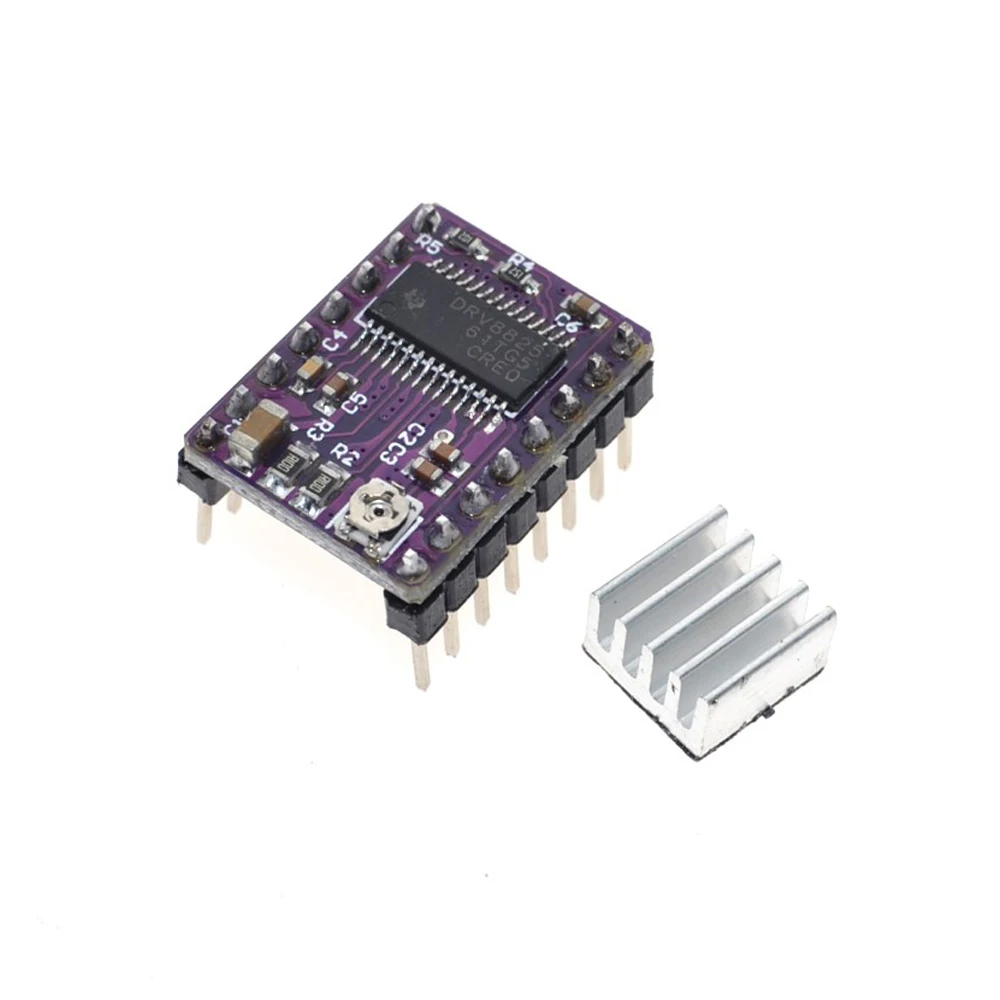

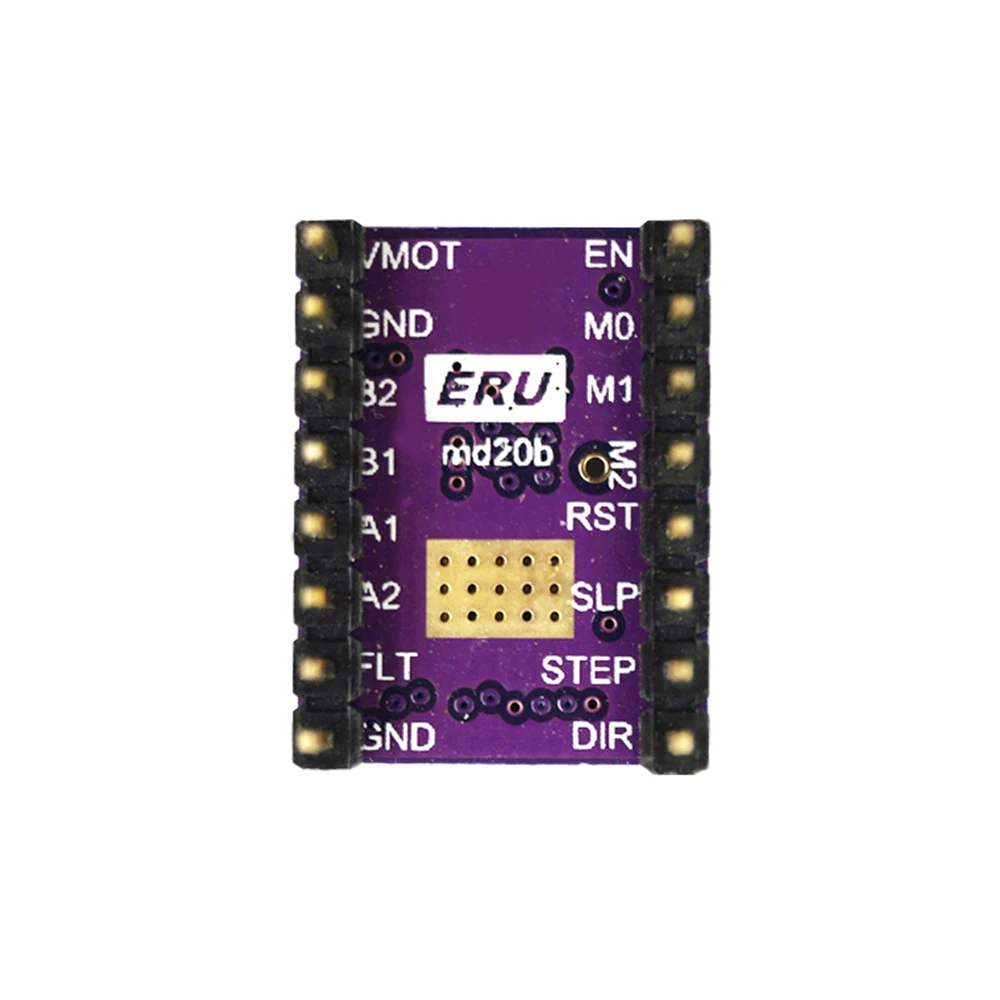

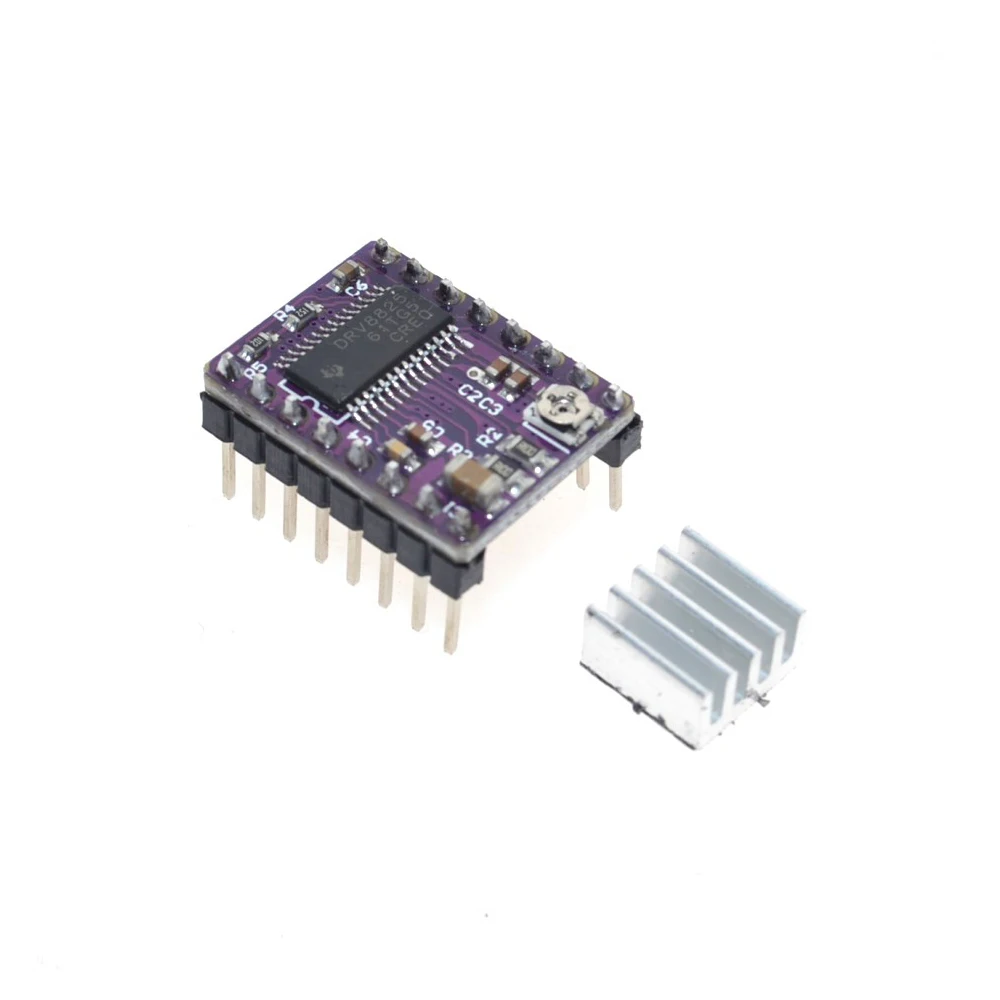

3Dprinter 5pcs/lot DRV8825 Stepper Motor Driver Module 4-layer PCB Optimized Version+Heatsink Good Cooling/Protection Safety

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare

Brand Name: FYSETC
Item Type: Driver
Model Number: DRV8825
supply voltage: alarm
Type: voltage regulator
material: PCB
with heat sink: yes
Size: 15 mmx20mm (the same as 4988)
Segmentation: 1, 1/2, 1/4, 1, 8, 1/16, 1/32
Drive current: 2.5 A
function: DRV8825 stepper motor driver module
benefit: replace A4988
range: for 3D printer

$23.18

93 in stock

3Dprinter 5pcs/lot DRV8825 Stepper Motor Driver Module 4-layer PCB Optimized Version+Heatsink Good Cooling/Protection Safety



01



Name : 3D printer DRV8825 stepper motor driver  5pcs/lot

1. The  calculation method  of driver current: i = vref  x 2
potentiometer has three pins, the voltage Vref  is with a multimeter test for the 8825 direction of the pin, the current can be adjusted by potentiometer . It  will increase  clockwise, oppositely , reduce  counterclockwise.

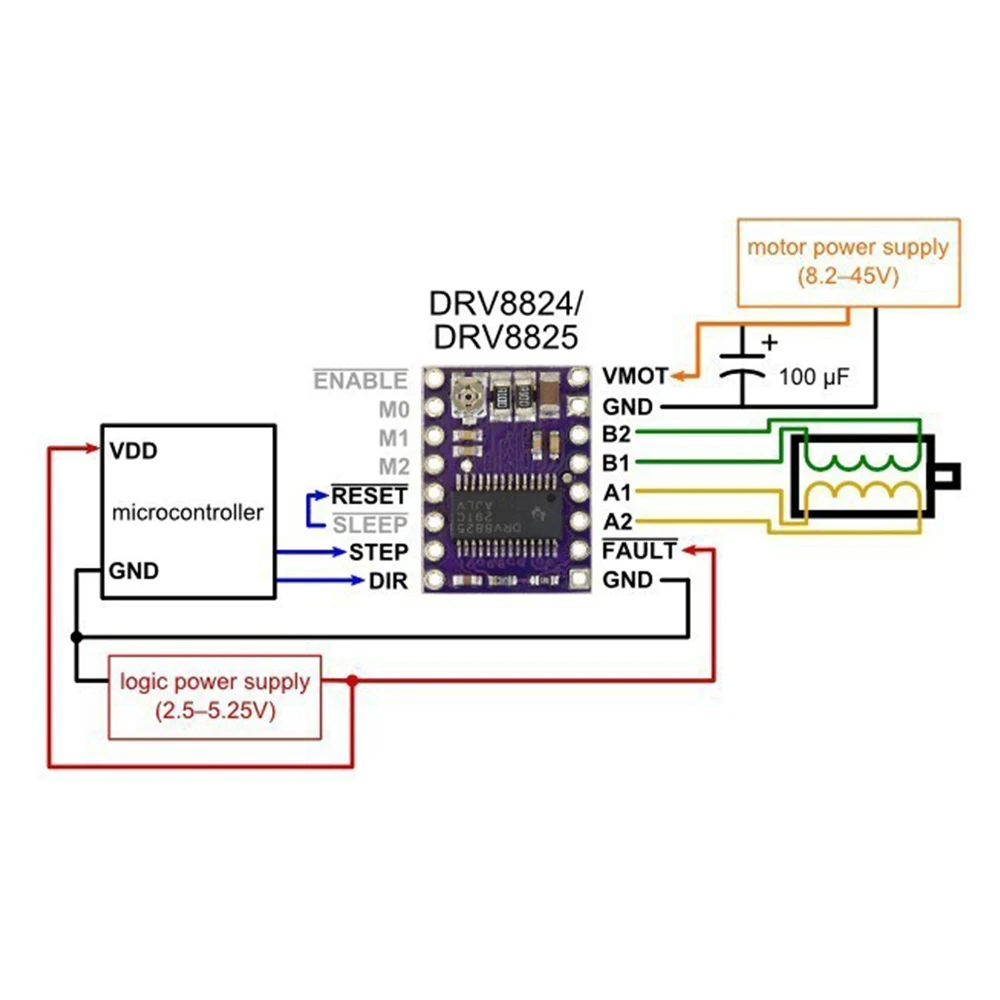

Refer to the following picture :
HTB1Q.69IFXXXXcVXFXXq6xXFXXX0

Overview

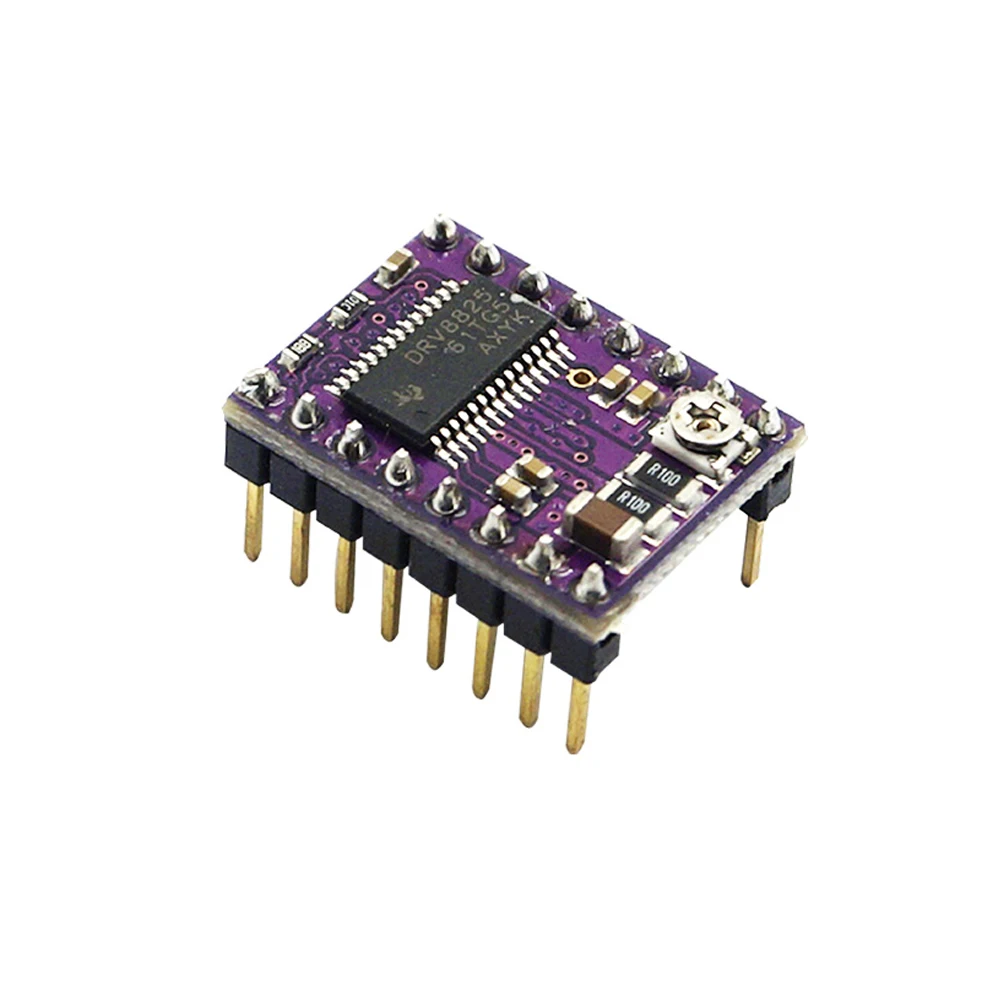

 This product is a carrier board or breakout board for TI’s DRV8825 stepper motor driver; we therefore recommend careful reading of the DRV8825 datasheet (1MB pdf) before using this product. This stepper motor driver lets you control one bipolar stepper motor at up to 2.2 A output current per coil (see the Power Dissipation Considerations section below for more information). Here are some of the driver’s key features:

1. Simple step and direction control interface.

2. Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step,

   1/16-step, and 1/32-step.

3. Adjustable current control lets you set the maximum current output with a     potentiometer, which lets you use voltages above your stepper motor’s rated

 voltage to  achieve higher step rates.

4. Intelligent chopping control that automatically selects the correct current

   decay mode (fast decay or slow decay).

5. 45 V maximum supply voltage.

6. Built-in regulator (no external logic voltage supply needed).

7. Can interface directly with 3.3 V and 5 V systems.

8. Over-temperature thermal shutdown, over-current shutdown,

   and under-voltage lockout.

9. Short-to-ground and shorted-load protection.

10. 4-layer, 2 oz copper PCB for improved heat dissipation.

11. Exposed solderable ground pad below the driver IC on the

   bottom of the PCB.

12. Module size, pinout, and interface match those of our A4988

stepper motor driver carriers in most respects (see the bottom of

this page for more information).

  We also carry a DRV8824 stepper motor driver carrier that can serve as a direct substitute for the DRV8825 carrier when using lower-current stepper motors. The DRV8824 can only deliver up to 0.75 A per coil without a heat sink (1.2 A max with proper cooling), but it has larger current-sense resistors that allow for better microstepping performance than the DRV8825 carrier at low currents.



The only way to tell our DRV8824 carrier apart from the DRV8825 carrier is by the markings on the driver IC; if you have a mix of the two, you might consider marking them (there is a blank square on the bottom silkscreen you can use for this). For lower-voltage applications, consider our pin-compatible DRV8834 carrier, which works with motor supply voltages as low as 2.5 V.

02

1 222 3 05 06 07 08 01 02 03 04


Specification: 3Dprinter 5pcs/lot DRV8825 Stepper Motor Driver Module 4-layer PCB Optimized Version+Heatsink Good Cooling/Protection Safety

Drive current 2.5 A
Segmentation 1- 1/2- 1/4- 1- 8- 1/16- 1/32
Size 15 mmx20mm (the same as 4988)
range for 3D printer
Item Type Driver
Model Number DRV8825
benefit replace A4988
Brand Name FYSETC
Type voltage regulator
Material PCB
function DRV8825 stepper motor driver module
supply voltage alarm
with heat sink yes
Dimensions
Weight 0.1 kg
Dimensions 10.0 × 5.0 × 8.0 cm
